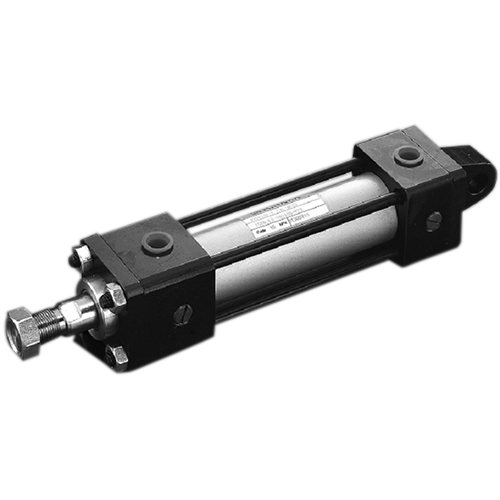

JIS Standard Hydraulic Cylinder 14MPa - 15B Series
14Mpa Hydraulic Cylinders (JIS B8354)
- Use carbon steel for both front/rear covers
- For sensing type, the cylinder is made by honed stainless steel (SUS304) seamless tube. Without sensor, made by honed carbon steel tube
- Medium carbon steel S45C is used for the piston rod, with hard chromate plated then polished to mirror class. It has very high rigidity and resistance to erosion and corrosion.
- Adjustable cushions and bleeding holes at both ends. ( Both with / without cushion types are available.)
DOWNLOAD
JIS Standard Hydraulic Cylinder 14MPa - 15B Series Catalog
Selection Guide for Hydraulic Cylinder Technology
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-32N000A | Standard | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-32M000A | Standard | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-32N000APPV | Standard+Buffer | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-32M000APPV | Standard+Buffer | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-32N000A | Standard | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-32M000A | Standard | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-32N000APPV | Standard+Buffer | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-32M000APPV | Standard+Buffer | Φ32 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ18 mm | M16x1.5x25 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-40N000A | Standard | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-40M000A | Standard | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-40N000APPV | Standard+Buffer | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-40M000APPV | Standard+Buffer | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 171+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-40N000A | Standard | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-40M000A | Standard | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-40N000APPV | Standard+Buffer | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-40M000APPV | Standard+Buffer | Φ40 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ22.4 mm | M20x1.5x30 | 21Mpa (214.2kgf/cm2) | 226+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-50N000A | Standard | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 185+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-50M000A | Standard | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 185+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-50N000APPV | Standard+Buffer | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 185+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-50M000APPV | Standard+Buffer | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 185+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-50N000A | Standard | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 242+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-50M000A | Standard | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 242+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-50N000APPV | Standard+Buffer | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 242+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-50M000APPV | Standard+Buffer | Φ50 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ28 mm | M24x1.5x35 | 21Mpa (214.2kgf/cm2) | 242+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-63N000A | Standard | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 198+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-63M000A | Standard | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 198+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-63N000APPV | Standard+Buffer | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 198+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-63M000APPV | Standard+Buffer | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 198+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-63N000A | Standard | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 264+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-63M000A | Standard | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 264+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-63N000APPV | Standard+Buffer | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 264+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-63M000APPV | Standard+Buffer | Φ63 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ35.5 mm | M30x1.5x45 | 21Mpa (214.2kgf/cm2) | 264+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-80N000A | Standard | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 219+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-80M000A | Standard | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 219+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-80N000APPV | Standard+Buffer | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 219+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-80M000APPV | Standard+Buffer | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 219+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-80N000A | Standard | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 292+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-80M000A | Standard | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 292+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-80N000APPV | Standard+Buffer | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 292+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-80M000APPV | Standard+Buffer | Φ80 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ45 mm | M39x1.5x60 | 21Mpa (214.2kgf/cm2) | 292+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-100N000A | Standard | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 232+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-100M000A | Standard | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 232+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-100N000APPV | Standard+Buffer | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 232+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15B-100M000APPV | Standard+Buffer | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 232+ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-100N000A | Standard | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 312+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-100M000A | Standard | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 312+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-100N000APPV | Standard+Buffer | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 312+2ST mm | ISO Vg32 |
 | Product Name | Accessories | Bore Size | Operating Pressure | Piston Rod | Piston Rod Thread | Proof Pressure | Standard Length | Working Fluid | Compare |
| 15BD-100M000APPV | Standard+Buffer | Φ100 mm | 0.3 - 14Mpa (3.06 -142.8kgf/cm2) | Φ56 mm | M48x1.5x75 | 21Mpa (214.2kgf/cm2) | 312+2ST mm | ISO Vg32 |
