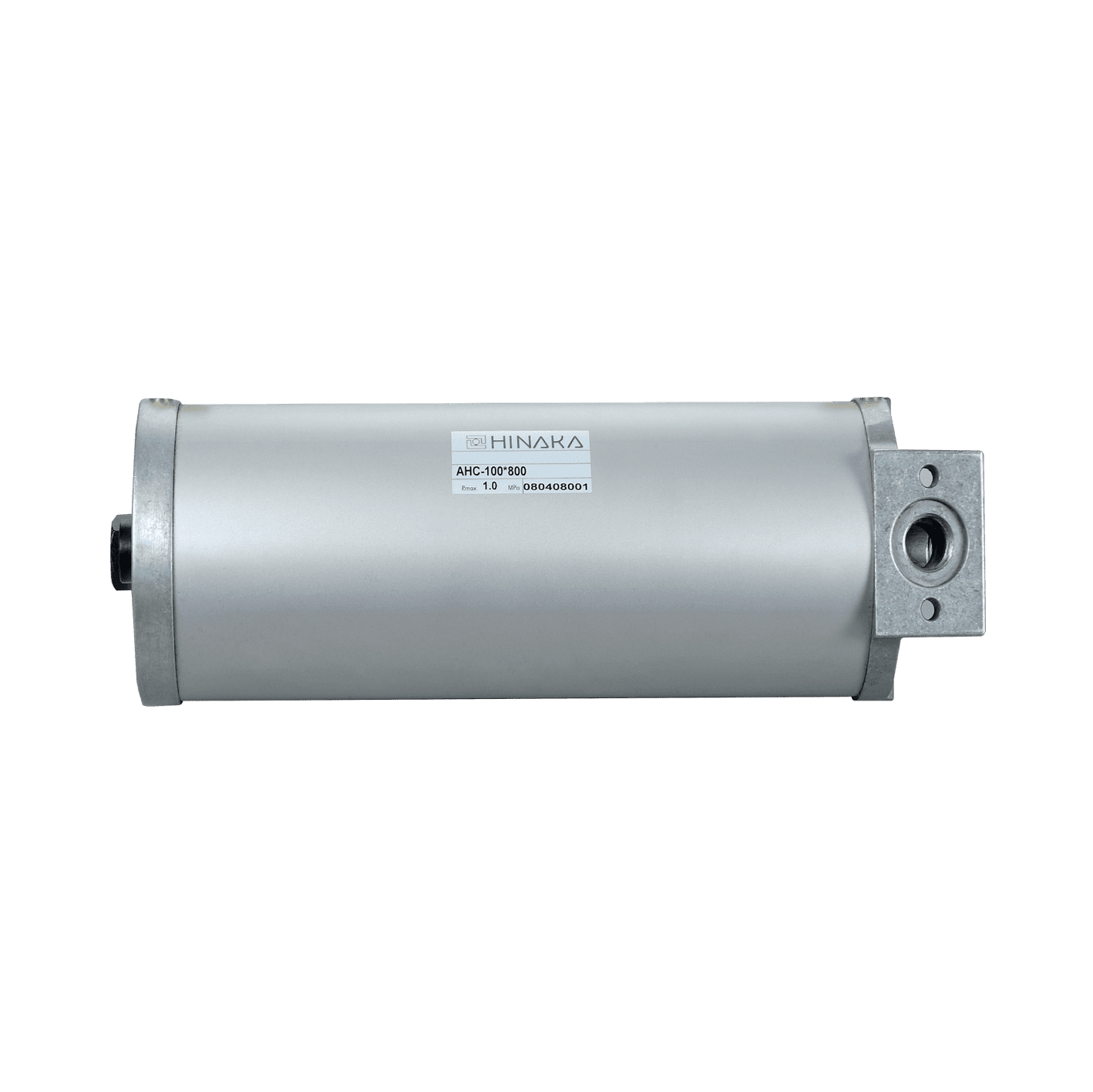

Air Hydro Convertor - AHC Series

AHC air-hydro converter: turns compressed air into a stable hydraulic-like drive, removing the load instability and judder of running a cylinder on air alone, with precise multi-point stopping — hydraulic-system performance at pneumatic cost.

Basic type of oil and air conversion

  • Improving air compressibility advantage
  • Improve the disadvantage of unstable air when the load is moved
  • Improve the disadvantage of concussion and instability, when driving at low air pressure
  • When multi-point travel, provide precise stop function
  • Achieve the function of hydraulic system with low cost.
DOWNLOAD

AHC Series Catalog

AHC-100B125FB Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC-100B125FB0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mm125mmWithout SensorPT1/2CPC P.32 / ISO VG32
AHC-100B125LB Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC-100B125LB0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mm125mmWithout SensorPT1/2CPC P.32 / ISO VG32
AHC-100B125U Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC-100B125U0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mm125mmWithout SensorPT1/2CPC P.32 / ISO VG32
AHC-100C125FB Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC-100C125FB0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mm125mmWithout SensorPT1/2CPC P.32 / ISO VG32
AHC-100C125LB Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC-100C125LB0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mm125mmWithout SensorPT1/2CPC P.32 / ISO VG32
AHC-100C125U Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC-100C125U0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mm125mmWithout SensorPT1/2CPC P.32 / ISO VG32
AHC2-100A125FB Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC2-100A125FB0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mmST=100mm, Length=270 / ST=200mm, Length=315G51R With Detection DevicePT1/2CPC P.32 / ISO VG32
AHC2-100A125LB Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC2-100A125LB0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mmST=100mm, Length=270 / ST=200mm, Length=315G51R With Detection DevicePT1/2CPC P.32 / ISO VG32
AHC2-100A125U Product NameActuation PressureCylinderCylinder LengthSensorSide Oil-OutletWorking Fluid Compare
AHC2-100A125U0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) Compressed AirΦ100 mmST=100mm, Length=270 / ST=200mm, Length=315G51R With Detection DevicePT1/2CPC P.32 / ISO VG32
