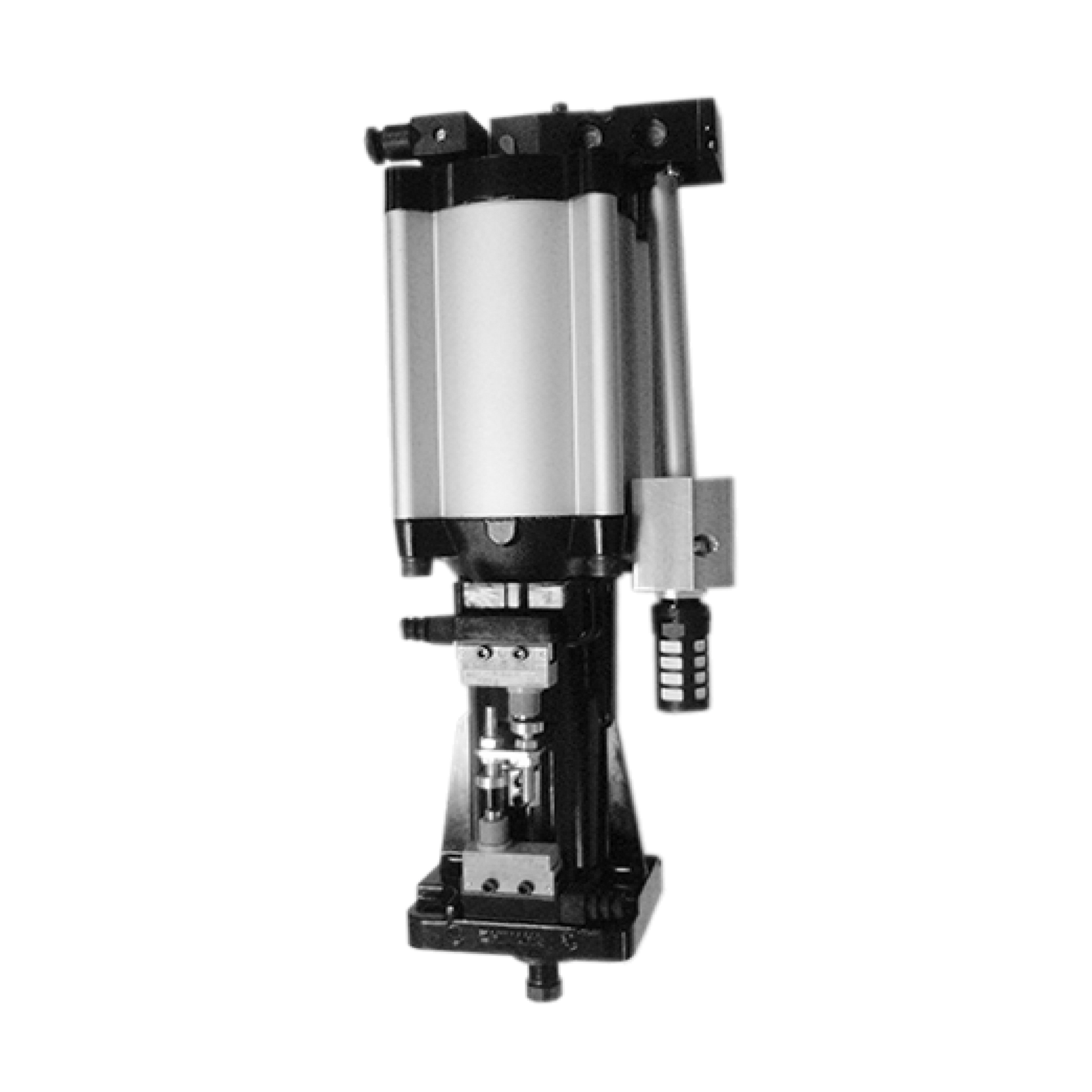

Tool Change Boosting Unclamping Cylinder - BPT Series

Built for belt-driven and gear-driven spindles, with air-oil boosting inside the cylinder and tool-to-tool change in under one second. A modular body removes the usual tangle of air lines, one-piece aluminium construction keeps weight off the spindle, and oil-level detection warns you before a crash or a stoppage. Tell us your spindle type and model, required unclamping force and stroke via Contact Us.

Boosting Unclamping Cylinder (For Belt-Drive Spindle and Gear Spindle)

  • Ultra-fast tool change, Tool-to-Tool exchange within 1 second
  • Modularization design, Pipe connection and quick exhaust valve are not required
  • Aluminum framework, Light and not a burden on the spindle
  • See-through Oil cup & oil level sensing, alert in advance to avoid shutdown due to oil shortage
DOWNLOAD

Tool Change Boosting Unclamping Cylinder - BPT Series Catalog

BPT-10U5S35P13M Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoost RatioLengthPneumatic CylinderSensorStrokeVoltageWorking Fluid Compare
BPT-10U5S35P13M2423 kgf3029 kgf3634 kgf0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air30.8386 mmΦ100 mmwith sensor13mmDC24, AC110, AC220CPC-R32 / ISO VG32
BPT-10U5S35P15M Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoost RatioLengthPneumatic CylinderSensorStrokeVoltageWorking Fluid Compare
BPT-10U5S35P15M2423 kgf3029 kgf3634 kgf0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air30.8403 mmΦ100 mmwith sensor15mmDC24, AC110, AC220CPC-R32 / ISO VG32
BPT-10U5S35P17M Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoost RatioLengthPneumatic CylinderSensorStrokeVoltageWorking Fluid Compare
BPT-10U5S35P17M2423 kgf3029 kgf3634 kgf0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air30.8417 mmΦ100 mmwith sensor17mmDC24, AC110, AC220CPC-R32 / ISO VG32
BPT-10U5S45P13M Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoost RatioLengthPneumatic CylinderSensorStrokeVoltageWorking Fluid Compare
BPT-10U5S45P13M3066 kgf3833 kgf4600 kgf0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air39416 mmΦ100 mmwith sensor13mmDC24, AC110, AC220CPC-R32 / ISO VG32
BPT-10U5S45P15M Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoost RatioLengthPneumatic CylinderSensorStrokeVoltageWorking Fluid Compare
BPT-10U5S45P15M3066 kgf3833 kgf4600 kgf0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air39435 mmΦ100 mmwith sensor15mmDC24, AC110, AC220CPC-R32 / ISO VG32
BPT-10U5S45P17M Product Name4 kgf Compressed Air5 kgf Compressed Air6 kgf Compressed AirActuation PressureBoost RatioLengthPneumatic CylinderSensorStrokeVoltageWorking Fluid Compare
BPT-10U5S45P17M3066 kgf3833 kgf4600 kgf0.2Mpa - 0.7Mpa(2kgf/cm2 - 7kgf/cm2) compressed air39455 mmΦ100 mmwith sensor17mmDC24, AC110, AC220CPC-R32 / ISO VG32
