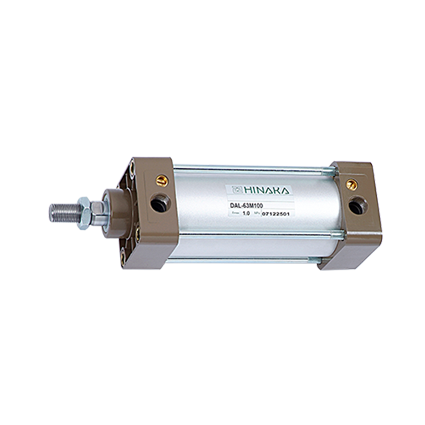

Tie Rod Pneumatic Cylinder - DAL Series
DAL aluminium-alloy pneumatic cylinder, bore ø40 to ø150, maximum pressure 1 MPa (10 kgf/cm²). Two low-friction U-ring seals, adjustable end cushioning, magnetic sensor compatible.
Aluminum Alloy Pneumatic Cylinder ISO6463 Standard Cylinder
- This series features two oil-resistant low friction U-ring seals. Adjustable end cushioning absorbs impact in high-speed operations without vibration, increasing operating efficiency. All models can be equipped with magnetic sensor devices. Self-lubricating front cap bearing enabling a low friction coefficient. Anticorrosive and light weight aluminum alloy cylinder. Easy mounting and fitting attachment.
DOWNLOAD
DAL Series Catalog
Selection Guide for Pneumatic Cylinder Technology
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-40M000 | Φ40 mm | Standard | 1Mpa(10kgf/cm2) | Φ16 mm | Magnetic | 50-500mm/s | 122+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-40M000 | Φ40 mm | Standard | 1Mpa(10kgf/cm2) | Φ16 mm | Magnetic | 50-500mm/s | 146+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-40M000 | Φ40 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ16 mm | Magnetic | 50-500mm/s | 146+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-40M000 | Φ40 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ16 mm | Magnetic | 50-500mm/s | (122+ST1)+(122+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-40M000 | Φ40 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ16 mm | Magnetic | 50-500mm/s | 198+ST1+ST2mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-50M000 | Φ50 mm | Standard | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 129.5+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-50M000 | Φ50 mm | Standard | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 159+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-50M000 | Φ50 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 159+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-50M000 | Φ50 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | (129.5+ST1)+(129.5+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-50M000 | Φ50 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 211+ST1+ST2mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-63M000 | Φ63 mm | Standard | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 132+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-63M000 | Φ63 mm | Standard | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 162+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-63M000 | Φ63 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 162+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-63M000 | Φ63 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | (132+ST1)+(132+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-63M000 | Φ63 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ20 mm | Magnetic | 50-500mm/s | 216+ST1+ST2mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-80M000 | Φ80 mm | Standard | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 153+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-80M000 | Φ80 mm | Standard | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 186+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-80M000 | Φ80 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 186+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-80M000 | Φ80 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | (153+ST1)+(153+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-80M000 | Φ80 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 250+ST1+ST2mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-100M000 | Φ100 mm | Standard | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 157+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-100M000 | Φ100 mm | Standard | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 190+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-100M000 | Φ100 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 190+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-100M000 | Φ100 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | (157+ST1)+(157+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-100M000 | Φ100 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ25 mm | Magnetic | 50-500mm/s | 258+ST1+ST2mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-125M000 | Φ125 mm | Standard | 1Mpa(10kgf/cm2) | Φ35 mm | Magnetic | 50-500mm/s | 181+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-125M000 | Φ125 mm | Standard | 1Mpa(10kgf/cm2) | Φ35 mm | Magnetic | 50-500mm/s | 228+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-125M000 | Φ125 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ35 mm | Magnetic | 50-500mm/s | 228+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-125M000 | Φ125 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ35 mm | Magnetic | 50-500mm/s | (181+ST1)+(181+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-125M000 | Φ125 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ35 mm | Magnetic | 50-500mm/s | 262+ST1+ST2mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DAL-150M000 | Φ150 mm | Standard | 1Mpa(10kgf/cm2) | Φ40 mm | Magnetic | 50-500mm/s | 192+ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALD-150M000 | Φ150 mm | Standard | 1Mpa(10kgf/cm2) | Φ40 mm | Magnetic | 50-500mm/s | 240+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALE-150M000 | Φ150 mm | Adjustable Stroke | 1Mpa(10kgf/cm2) | Φ40 mm | Magnetic | 50-500mm/s | 240+2ST mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALM-150M000 | Φ150 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ40 mm | Magnetic | 50-500mm/s | (192+ST1)+(192+ST2) mm | (-10) ~ (+60)℃ |
 | Product Name | Bore Size | Form | Operating Pressure | Piston Rod | Sensor | Speed Range | Standard Length | Temperature Range | Compare |
| DALT-150M000 | Φ150 mm | Multi-positions | 1Mpa(10kgf/cm2) | Φ40 mm | Magnetic | 50-500mm/s | 279+ST1+ST2mm | (-10) ~ (+60)℃ |
