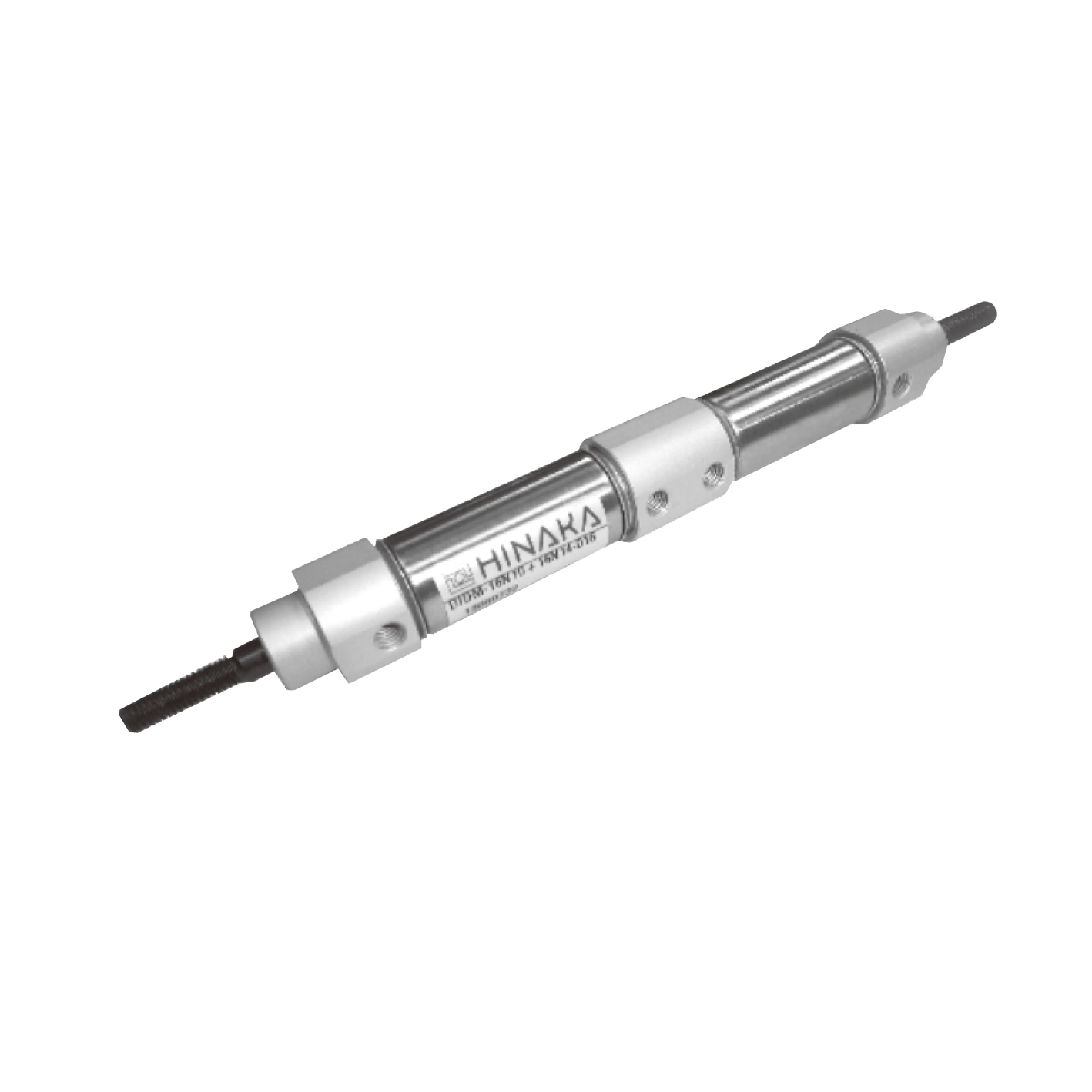

Pressure plate pneumatic cylinder

Press around the circuit board. When drilling at high speed, changing the stroke and tool, the impact is reduced to achieve a cushion effect.
Suitable for high-speed operation, and the maximum speed is 380-400 times per minute.
Long service life, and up to more than 20,000 kilometers under correct installation.
One end of the shaft does not rotate and the hardness is more than 60 degrees.

	Product Name	Action	Actuation Pressure	Application	Customization	Front Inner Diameter	Front Stroke	Length	Piston Rod Thread	Proof Pressure	Rear Inner Diameter	Rear Stroke	Sensor	Speed	Temperature Range	Working Fluid	Compare
	DIDM-16M10+16M15-G48R2	Double-acting	0.06Mpa - 0.7Mpa(0.612kgf/cm2 - 7.14kgf/cm2) compressed air	Dedicated Devices for PC Sheet Drilling	Customized content can be changed according to the situation after discussing with the company's R&D department	Φ16 mm	10 mm	299.5mm	M5x0.8x16	1Mpa(10.2kgf/cm2)	Φ16 mm	15 mm (Rotatable)	with Magnet	50mm/s	(0) ~ (+60)℃	compressed air
