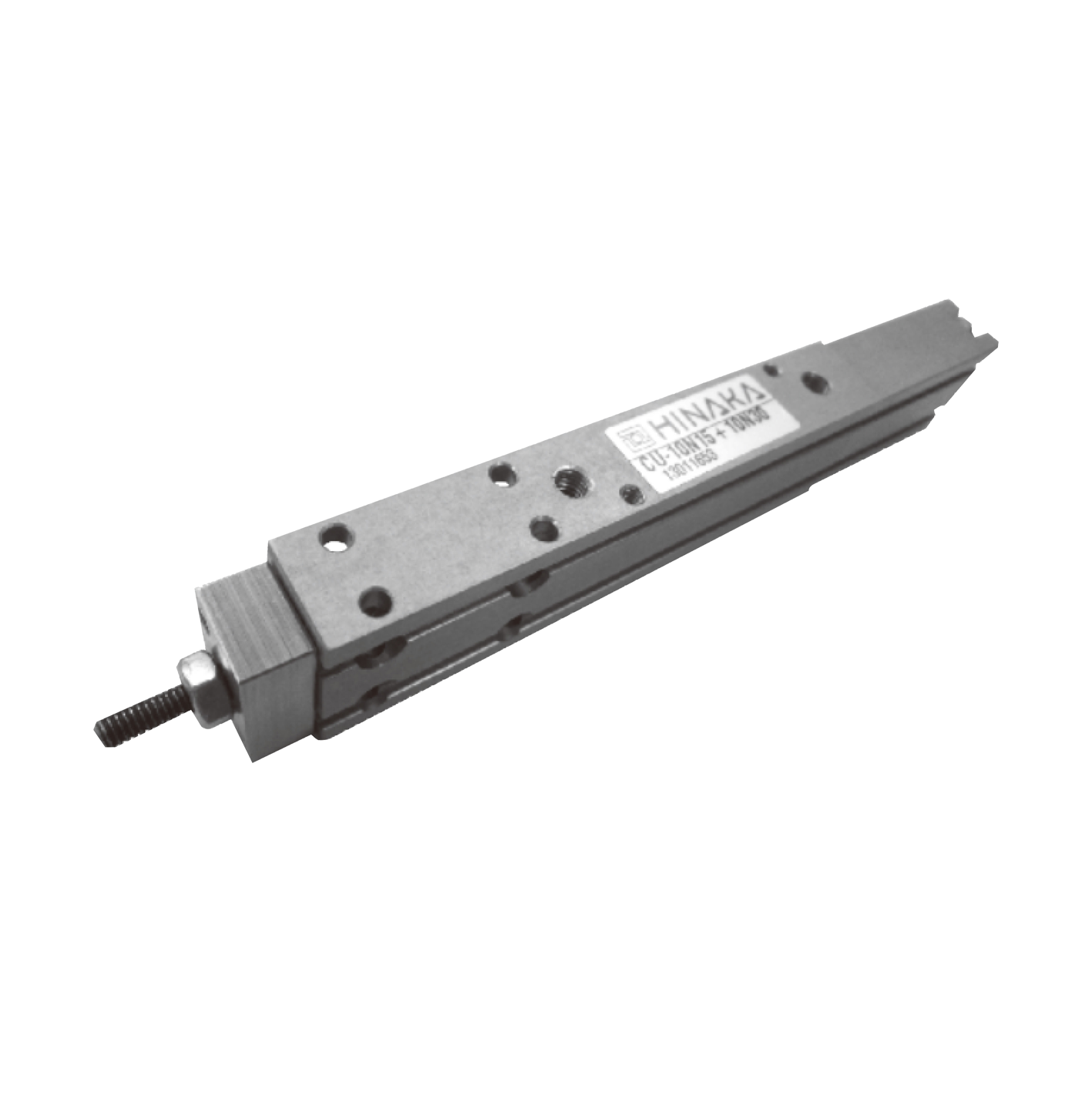

Free Mount Non-rotating Rod Type Cylinder

Multi-point anti-rotation pneumatic cylinder

  • Due to different hole size of the hole to be drilled, when drilling the next hole, move the drill guide plate to the precise position to ensure the accuracy of the hole position.
  • The body is rectangular, without bracket Can be installed directly on multiple sides.
  • The mounting surface can be freely selected, saving space.
DOWNLOAD

CU Series Catalog
Dedicated Devices for PC Sheet Drilling

CU-10N15+10N30 Product NameActionActuation PressureApplicationCustomizationFront Inner DiameterFront StrokeLengthProof PressureRear Inner DiameterRear StrokeSpeedTemperature RangeWorking Fluid Compare
CU-10N15+10N30Double-acting0.06Mpa - 0.7Mpa(0.612kgf/cm2 - 7.14kgf/cm2) compressed airDedicated Devices for PC Sheet DrillingCustomized content can be changed according to the situation after discussing with the company's R&D departmentΦ10 mm15 mm158mm1Mpa(10.2kgf/cm2)Φ10 mm30 mm300mm/s(0) ~ (+60)℃compressed air
